Description

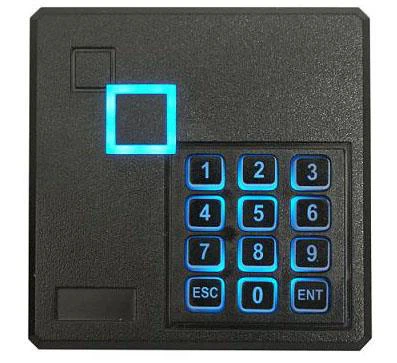

Stand Alone Access Controller with Em Reader
Weigand 6399 Users Stand Alone Access Controller with Em Reader (SAC102-WG)
Basic Info
| Model NO.: SAC102-WG | Type: Access Controller |
| Interface: Weigand 26 | Work Voltage: 12 VDC 1.2A |
| Material: Metal shell | Certification: CE FCC |
| Transport Package: Boxs | Operating Environment: Indoor |
| Read Card distance: More than 3CM | Origin: China |
| Entry Mode: Card/Card+Pin/Pin | User capacity: up to 6399 Users |
| Reader: EM/ID Reader Built in | HS Code: 9106100000 |
Model Show
| Model | Specification |
| SAC102-WG | Stand Alone Access Controller with EM Reader User capacity: up to 6399 Users EM Or IC Reader Built in Read Card distance: more than 3CM (SAC102-WG and SAC102C-WG Can Connect one Extra Reader ) |
Product Description
Quick Details
Place of Origin: China
Brand Name: TAC
Model Number: SAC102-WG
Power supply: 12 VDC 1.2A
Reader: EM/ID Built in
Entry Mode:Card/Card+Pin/Pin
Warranty: 3 years
Status Indication
| Instruction | Red light | Green light | Buzzer |
| Working | On | ||
| Program mode | flash | ||
| Program mode sub-menu | On | ||
| Presenting unregistered card | On | Make long sound “di” | |
| Presenting registered card& door open |
‘On’ time be identical with door open |
Make two short sound “di di” | |
| After Presenting the card and need to input the passwords |
Red light and green light are at interval flash |
||
| Card and password mode | Flash every 0.5 second |
||
| Password mode | Flash every 1 second |
||
| keyboard | Making one short sound “di” | ||
| Successful Setting | Making two short sound “di di” | ||
| Failure Setting | Making a long sound “di” | ||
| Invalid inputting | Making a long sound “di” | ||
| Alarm | Continuous sound “di di di di…” |
||
