Description

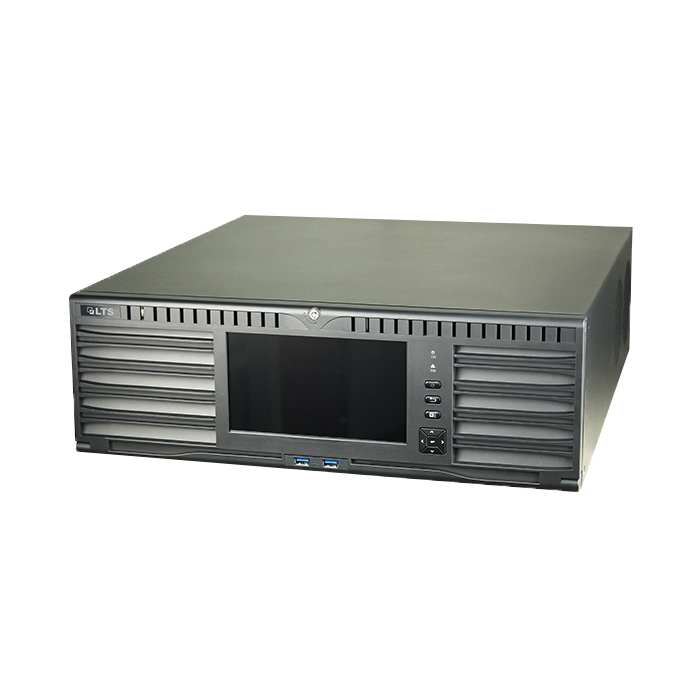

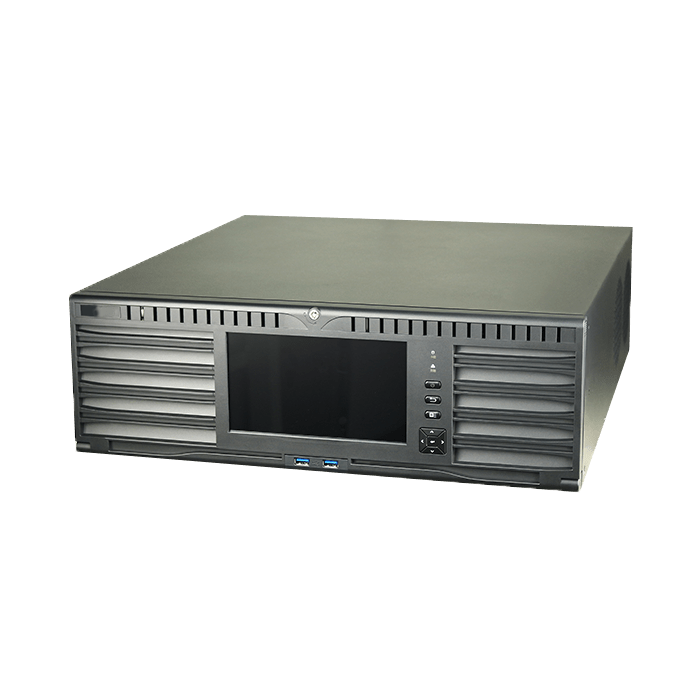

The Platinum 256-Channel Enterprise Level NVR (Model LTN07256-R) is a cutting-edge Network Video Recorder designed to provide comprehensive, scalable surveillance solutions for large-scale enterprises and high-demand security environments. With the ability to support up to 256 IP cameras, this powerful 3U rack-mountable NVR offers advanced video management, high-definition playback, and extensive storage capacity, making it ideal for complex surveillance systems that require continuous operation, high-resolution video, and reliable data management.
Equipped with dual HDMI and VGA outputs, the LTN07256-R supports resolutions up to 4K or dual 1080p displays, allowing users to monitor multiple camera feeds simultaneously with exceptional clarity. This flexibility ensures that both large and small monitoring setups can be easily accommodated, whether in a control room or remote location.
| Video/Audio Input |
| IP Video Input |
256-CH,Up to 8MP Resolution |
| Two-Way audio Input |
1-ch, RCA (2.0 Vp-p, 1kΩ) |
| Network |
| Incoming Bandwidth |
640Mbps, or 400Mbps (When RAID is Enabled) |
| Outgoing Bandwidth |
400Mbps |
| Remote Connection |
256 |
| Video/Audio Output |
| Recording Resolution |
8MP/6MP/5MP/3MP/1080P/UXGA/720P/VGA/4CIF/DCIF/2CIF/CIF/QCIF |
| HDMI1/VGA1 Output Resolution |
1-ch,
1920 × 1080P /60Hz, 1600 × 1200 /60Hz, 1280 × 1024 /60Hz, 1280 × 720 /60Hz, 1024 × 768/60Hz |
| HDMI2 Output |
1-ch,
1920 × 1080P /60Hz, 1600 × 1200 /60Hz, 1280 × 1024 /60Hz, 1280 × 720 /60Hz, 1024 × 768/60Hz |
| HDMI outputs (on HDMI Output Extension Board) |
1-ch,
1920 × 1080P /60Hz, 1600 × 1200 /60Hz, 1280 × 1024 /60Hz, 1280 × 720 /60Hz, 1024 × 768/60Hz |
| Audio Output |
1-ch, RCA (Linear, 1kΩ) |
| Decoding |
| Live View/Playback Resolution |
H.264, MPEG4, M-JPEG |
| Synchronous Playback |
16-CH |
| Capability |
44-ch@1080P |
| Hard Drives |
| SATA |
16 SATA Interfaces for 16HDDs |
| Capacity |
Up to 6TB Capacity for Each HDD |
| Disk Array |
| Array Type |
RAID0, RAID1, RAID5, RAID10 |
| Number of Array |
16 |
| Interface |
| Network Interface |
4 RJ-45 10 /100 /1000 Mbps self-adaptive Ethernet Interfaces |
| Optic Fiber Interface |
4, 1000 Mbps Optic Fiber Interface |
| Serial Interface |
RS-232; RS-485; Keyboard |
| USB Interface |
2 × USB 2.0 on Front Panel and 2 × USB 3.0 on Rear Panel |
| Alarm In/Out |
16/8 |
| General |
| Power Supply |
100 ~ 240 VAC, 50 ~ 60 Hz |
| Consumption |
≤ 100 W (Without Hard Disk or DVD-R/W) |
| Working Temperature |
14ºF ~ 131ºF(-10 ºC ~ +55 ºC) |
| Working Humidity |
10% ~ 90% |
| Casing |
19-Inch Rack-Mounted 3U Chassis |
| Dimensions (WxDxH) |
17.4″ ×19.4″×5.7″(442× 494 ×146 mm) |
| Weight |
≤ 34.2 lb (15.5 Kg,without hard disk or DVD-R/W) |
|
