Description

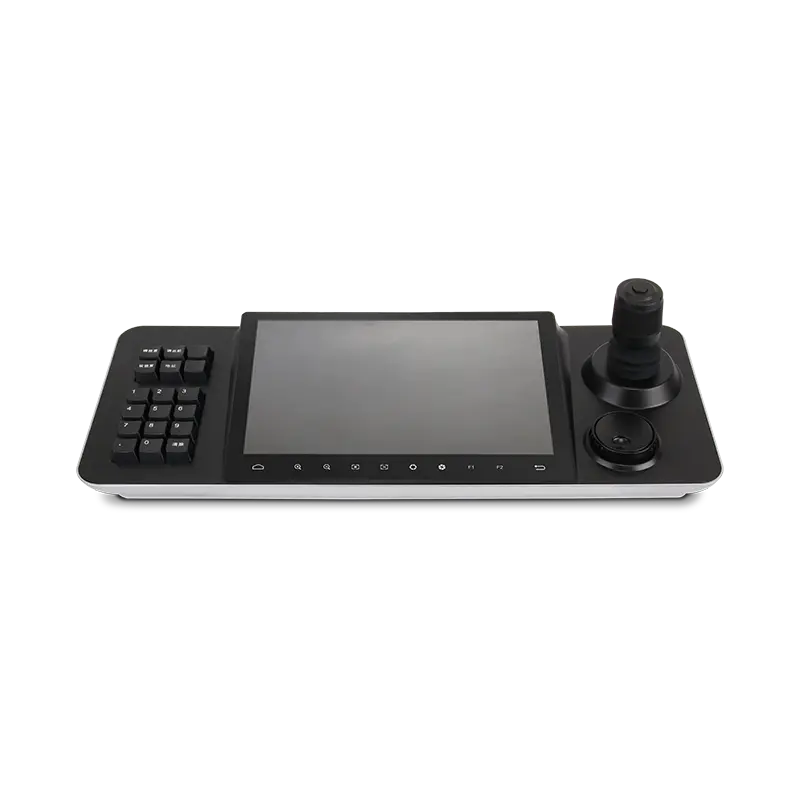

The Network Control Keyboard is a state-of-the-art control interface designed for professional surveillance systems requiring efficient and intuitive management of multiple devices. Its 10.1-inch capacitive touchscreen provides a responsive and clear display, facilitating seamless interaction with the system.
Powered by Android 6.0, the keyboard supports high-definition video decoding, including H.265/H.264 formats, with capabilities of up to 4K resolution at 30fps for a single channel or 720p at 30fps for four channels simultaneously. This ensures high-quality live viewing and playback.
| General | |
| Operation System | Android 6.0 |
| Joystick | 4-axis joystick |
| Communication | Network |
| Local Decoding | H.265/H.264
Max H.264 1ch 1080P@60fps Max H.264 4ch 720P@30fps Max H.265 1ch 4k@30fps |
| Protocol | Onvif 2.4 |
| Display Screen | IPS 10.1” capacitive touchscreen
Resolution: 1280 × 800 |
| Interface | |
| Network Interface | 1 RJ45 |
| RS485 | 1 |
| RS232 | 1 |
| USB Interface | USB 2.0 × 1 |
| Audio Interface | 1ch, 3.5mm connector |
| Video Interface | HDMI |
| Environmental | |
| Power Supply | DC12V/2A |
| Consumption | <15W |
| Operating Humidity | 10% ~ 90% RH |
| Operating Temperature | -10 °C ~ 40 °C (14 °F ~ 104 °F) |
| Dimensions | 450mm (L) x 178.6mm (W) x 115.4mm (H) |
| Net Weight | About 2kg |
